Grinding Mill ACM Series MPT

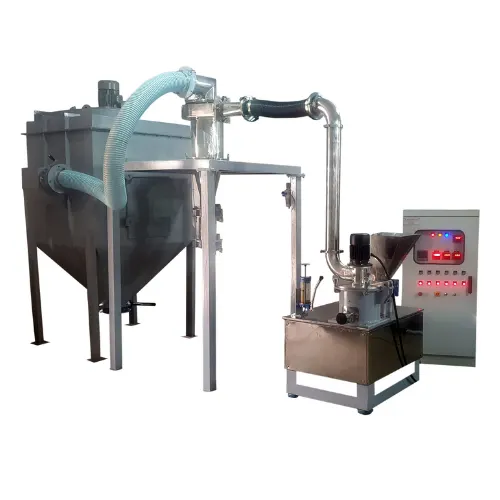

MPT Series Air Classifying Mill is composed of volumetric screw feeder, high-speed air classifying mill, cyclone, butterfly valve and fine dust collector cum blower. It has the functions of high-speed crushing, airflow classification and ultrafine powder classification. Best particle size distribution can be achieved with free adjustable particle size 10 to 100 μm. This mill is particularly useful for application that requires frequent product change. It is the best grinding system for heat sensitive products such as Powder Coatings, Pigments, Pharmaceuticals and many more.
- Easy to clean & maintain
- Product recovery < 98 %
- Particle Size distribution is concentrated, stable and adjustable
- Additive and Ground feeder can be equipped
- Low raised Temperature in mill, low temperature of powder
- Low power consumption, high output
- Dust Free Operation, Smooth Grinding
- Short changeover time between colour change
| Model | Output Kg/Hr | Electrical Load kW | Classified Speed RPM | Mill Speed RPM | Air Flow CFM |
|---|---|---|---|---|---|
| MPT-ACM 10 | 140–180 | 13.5 | 0–2800 | 7000 | 750 |
| MPT-ACM 20 | 240–280 | 28.5 | 0–2800 | 5600 | 1450 |
